SPECIFICATIONS
Brand Name: SONOFF
Certification: CE,FCC
Communication method: Zigbee
Compatibility: All Compatible
High-concerned chemical: none
Inbox adaptor: No
Input: DC 5V (100mA Max)
Model Number: SONOFF ZB Dongle-P
Origin: Mainland China
Power Source: Other,Other
Product Name: SONOFF ZBDongle-P
Shell material: Alumium alloy
State of Assembly: Ready-to-Go
Voltage range: USB (5-20V DC)
Wireless: Zigbee 3.0
Working temperature: -10℃-40℃
NOTE: There is a version of ZBDongle-E. Please check the ZBDongle-E in our store to view details.

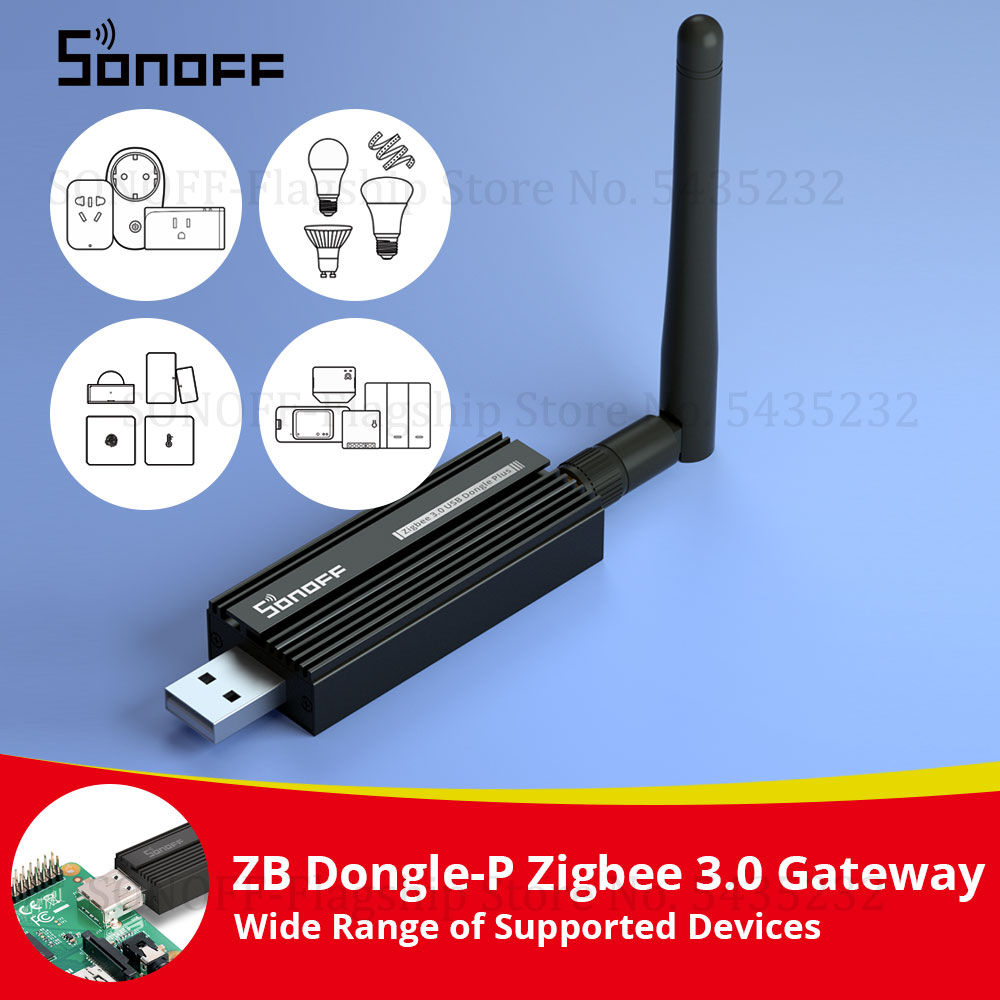

SONOFF ZB Dongle-P Zigbee 3.0 USB Dongle Plus Universal Zigbee Gateway Support via ZHA or Zigbee2MQTT Sonoff Zigbee Series
SONOFF Zigbee 3.0 USB Dongle Plus is a universal Zigbee USB stick. It can be used as a universal Zigbee gateway in Home Assistant or other open-source platforms via ZHA or Zigbee2MQTT to locally control all your Zigbee sub-devices, so you don't need to invest in the Zigbee hubs for different brands, all you need is a universal gateway - Dongle Plus! The dongle plus has a wide range of supported devices, such as SONOFF BASICZBR3, SONOFF S31 Lite zb, SONOFF SNZB01, SONOFF SNZB02, SONOFF SNZB03, SONOFF SNZB04, SONOFF ZBMINI, SONOFF S26R2ZB , and various sub-devices from various brands or flash router firmware to extend the network range. The official firmware supports 21 direct children by default and up to 40 children. You can modify the relevant configuration to support up to 100 children.
Wide Range of Supported Devices
Dongle can be used as a Zigbee 3.0 gateway in open-source automation platforms to manage various sub-devices from various brands or flash router firmware to extend the network range. * The official firmware supports 21 direct children by default and up to 40 children. You can modify the relevant configuration to support up to 100 children.
Get Your Dongle Zigbee & Matter Ready in eWeLink CUBE
What's eWeLink CUBE OS? A free self-hosted local system that bridges eWeLink Wi-Fi and multi-brand Zigbee devices into the Matter network for Apple Home, SmartThings, Google Home, Alexa, and Home Assistant.
Hardware Description
Product Features:
Pre-flashed with Z-Stack 3.x.0 coordinator firmware Can use ZHA in Home Assistant or use Zigbee2MQTT Base on TI CC2652P + CP2102N +20dBm output gain SMA interface external antenna Aluminum housing effectively reduces signal interference from peripherals Optional 1.5m USB extension cable for better signal range
Package includes :
1 * Zigbee 3.0 USB Dongle Plus 1 * Antenna 1 * User Manual
